DS10

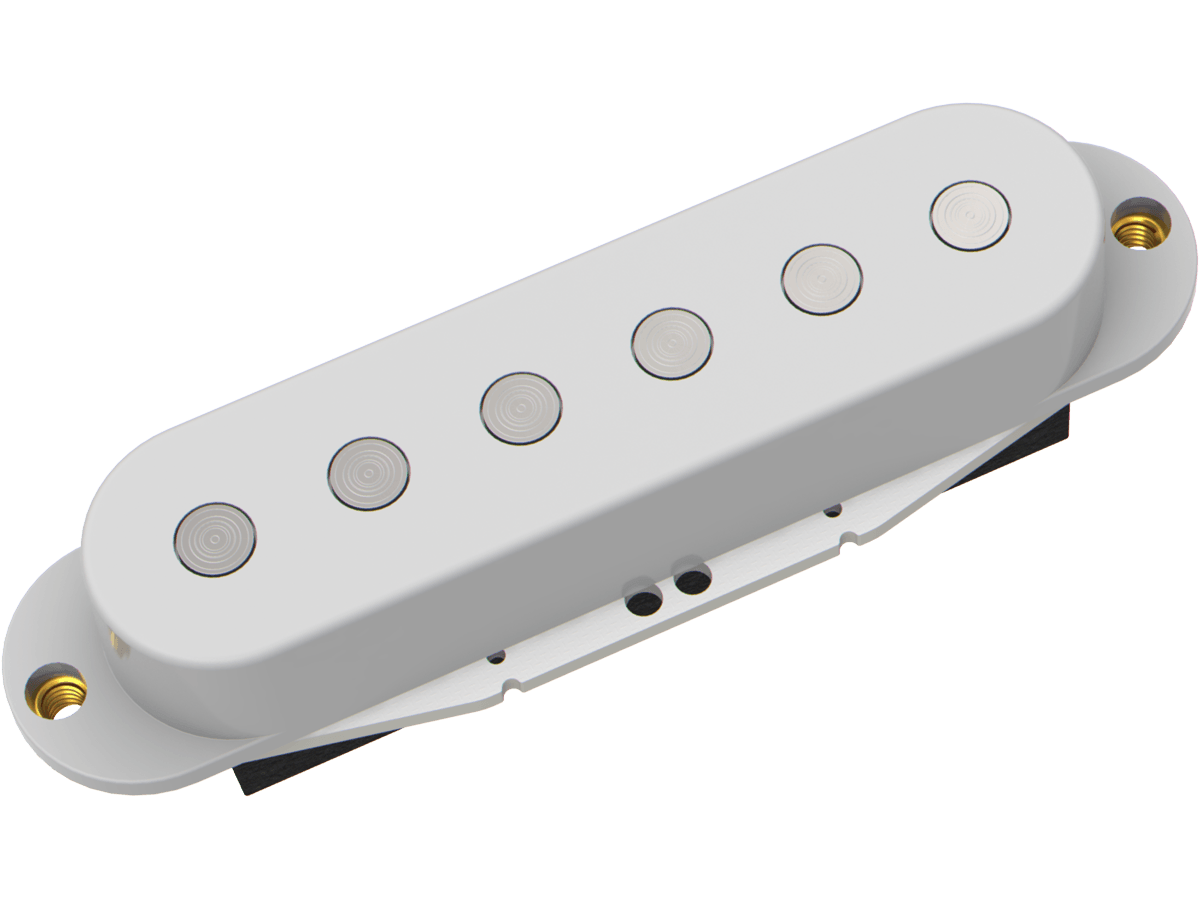

Clear sound and high-end bite without the characteristic “twang" of vintage single-coil pickups for Stratocaster ®. The sharply focused magnetic field provide by two ceramic bars, imparts greater attack and punch. This pickup can be combined with any other single-coil model (ALNICO or ceramic) and matches great in terms of output with standard humbuckers. The middle pickup is RWRP, reverse wind reverse polarity, for noise cancellation in the in-between 2 and 4 positions.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate / High
  • DC RESISTANCE: 5.43K (neck-middle) y 6.44K (bridge)
  • MAGNET: 2 CERAMIC bars
  • RESONANCE PEAK: 3.6KHz (neck-middle) and 3,08KHz (bridge)
  • INDUCTANCE: 3.85 Henries (neck-middle) y 5.17 Henries (bridge)
  • HUM CANCELLING: No

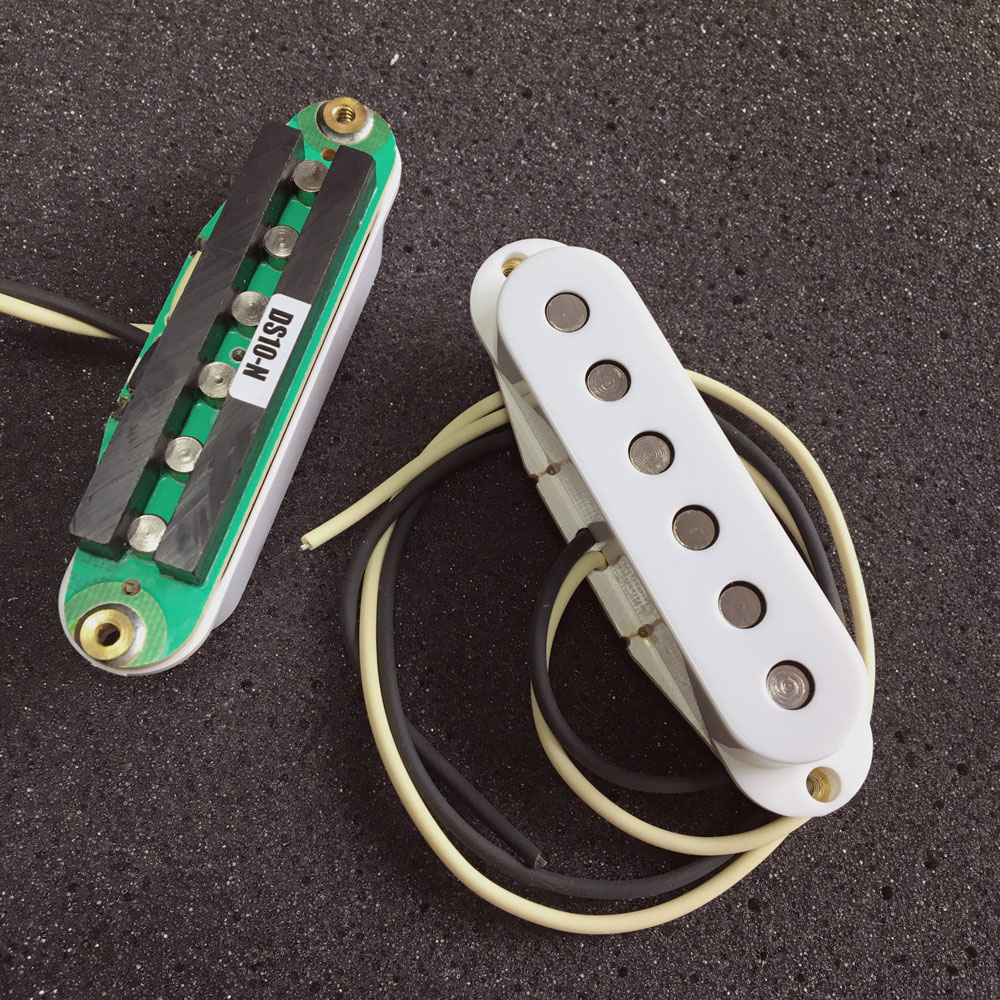

DS10-N / DS10-M

4
Bass
6
Mid
8
Treble

DS10-B

5
BAss
7
Mid
7
Treble
  • CABLE: single conductor Santoprene®
  • PLASTIC COVER: white, black.
  • BASE: CEM1 with two 6/32” brass treads for lifetime guarantee.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
