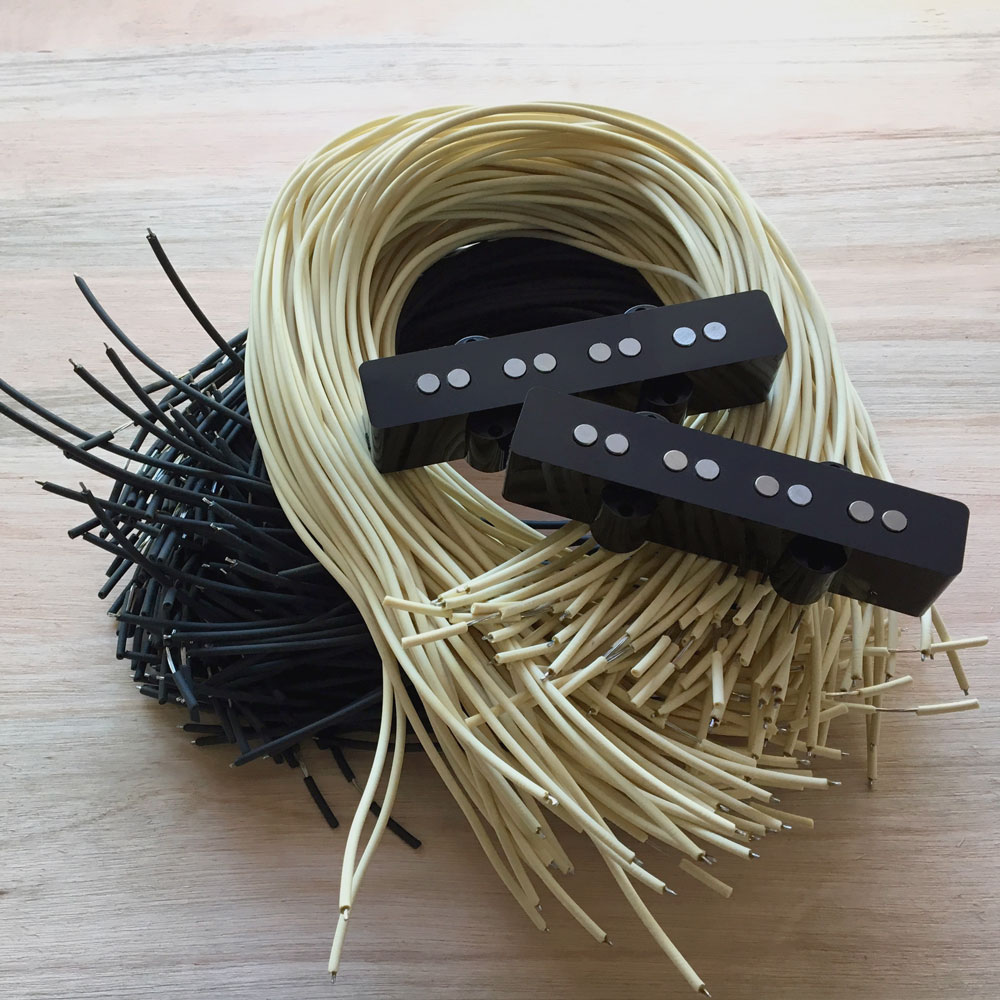

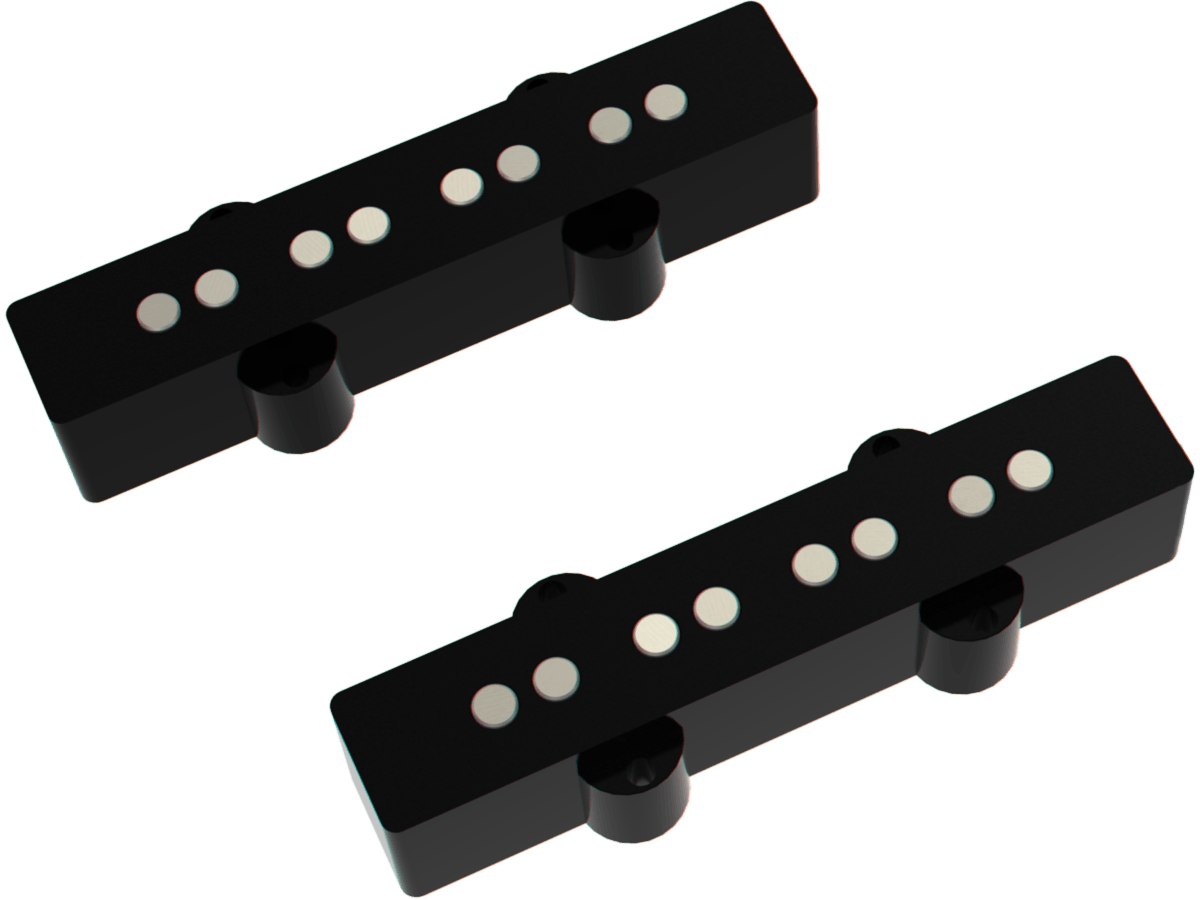

Jazz Bass ® Custom V Set

DS61-A

Our Jazz Bass ® Custom V Set captures the classic tone with just the right amount of fullness, midrange and definition in the upper notes. The Alnico 5 polepieces and moderate windings bring out the twangy, warmth and fullness of the instrument while maintaining clarity. Compare to the DS61, this Jazz Bass ® set has a focused upper definition with more aggressiveness since the ALNICO polepieces are closer to the strings. The pickups have a vintage cover look and both neck and bridge pickups are wound RWRP, reverse wind reverse polarity, so that it will hum-cancel when used together. Built with the right color and thickness of vulcanized fiber, this set is a drop-in replacement for any American Standard Jazz Bass ®.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 7,73K (neck) and 8K (bridge)
  • MAGNET: hand-beveled ALNICO 5 pole pieces
  • RESONANCE PEAK: 3,8KHz (coils in parallel)
  • INDUCTANCE: 1,54 Henries (coils in parallel)
  • HUM CANCELLING: No
8
BAss
7
Mid
7
Treble
  • CABLE: Santoprene® single conductor
  • PLASTIC COVER: vintage-black
  • BASE: vulcanized fiber
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment rubber and manual instructions.
