Tóxico 7-T

DS108-T

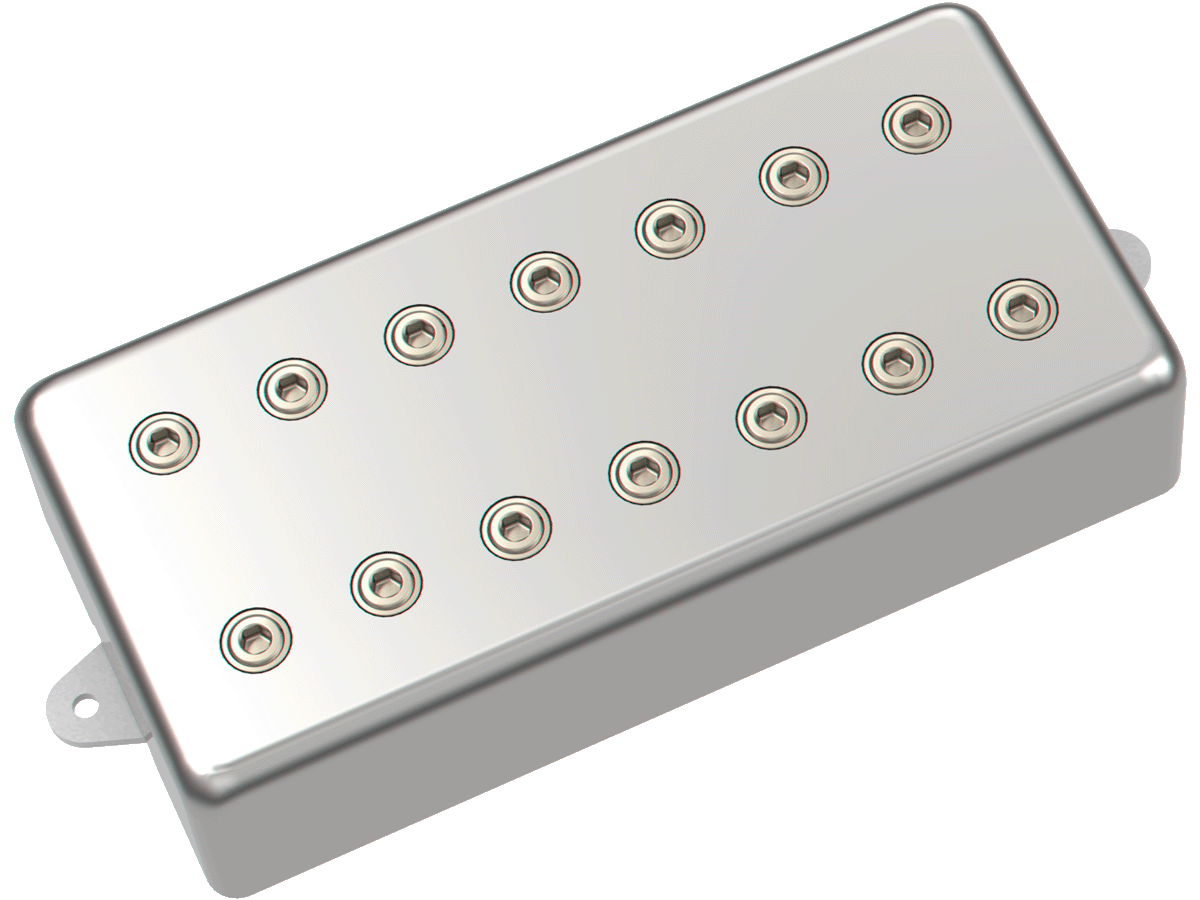

High output 7-string humbucker loaded with an ALNICO 8 bar that delivers the clarity of a ceramic magnet along with the greater warmth and sustain of ALNICO. This model comes with a nickel silver-plated cover and combines aggressive windings with and an extra-magnetized magnet that provides a unique combination: warmer treble response, focused midrange frequencies, and more defined bass with incredible power. Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. It comes with 14 adjustable Allen screws and a 4-conductor cable + braid for multiple connections.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT:  High
  • DC RESISTANCE: 16.6K (neck) y 19.6K (bridge)
  • MAGNET: ALNICO 8 bar
  • RESONANCE PEAK: 2.26KHz (neck) y 1.86KHz (bridge)
  • INDUCTANCE: 7.13 Henries (neck) y 10.9 Henries (bridge)
  • HUM CANCELLING: Yes

DS108-TN

7
Bass
8
Mid
8
Treble

DS108-TB

8
Bass
8
Mid
7
Treble
  • WINDING: Closed winding method that provides extra sensitivity and sustain compare to any other humbucker pickup.
  • CABLE: 4-conductor shielded
  • COVER: plated nickel-silver
  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
