Distópico

DS110

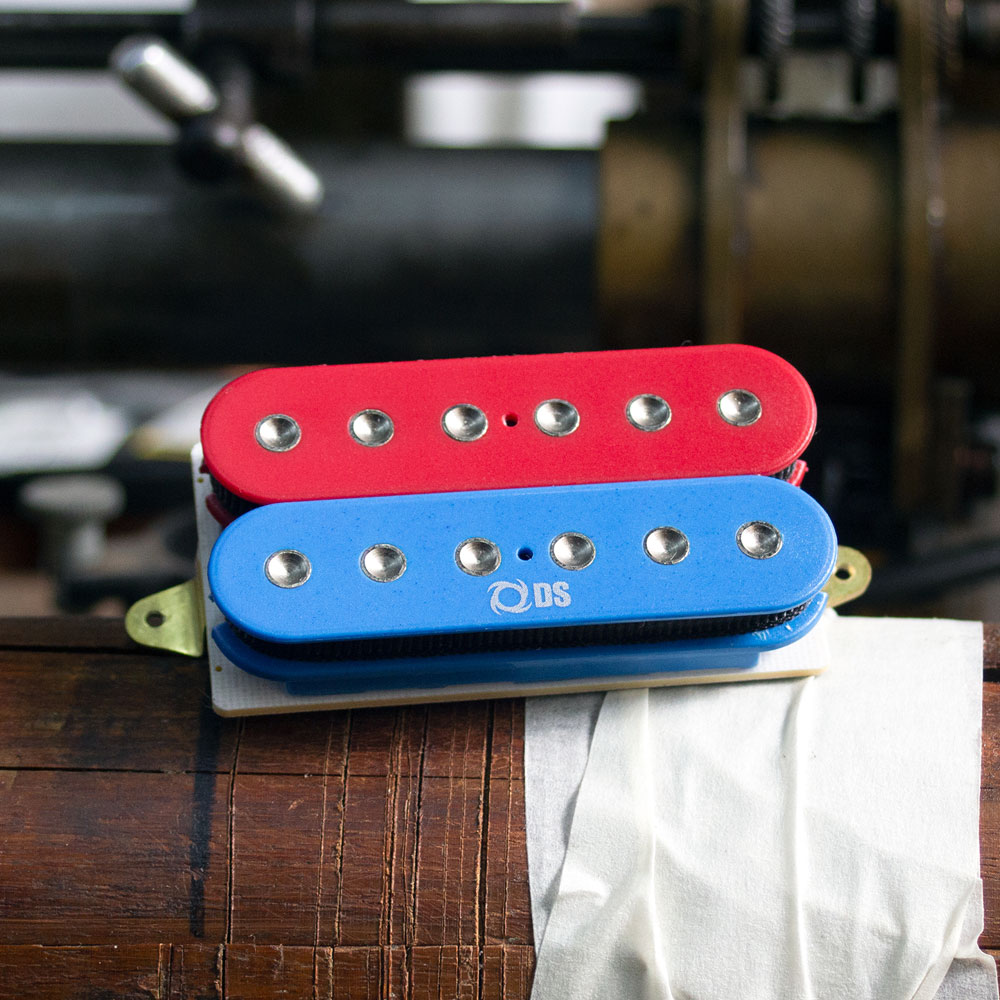

Distópico is a high-output ceramic humbucker with asymmetrical bobbins, unpredictable in harmonics and a multiplier of sound possibilities for your guitar. This pickup is truly insane/dystopian in its dynamics and extremely sensitive to string/pull action. The neck version features solid, defined mids with good attack. At the bridge, Distópico acquires great presence, especially in the bass and treble frequencies, offering a high level of audio compression typical of ceramic models.Protect by a thin tape, the magnet wire is wound very close to the metallic slugs and metallic thread slugs of each bobbin, providing extra sensitivity and sustain compare to any other humbucker pickup. Comes with a 4-conductor shielded wire for multiple wiring options. Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: High
  • DC RESISTANCE: 12.9K (neck) y 15.4K (bridge)
  • MAGNET: CERAMIC bar
  • RESONANCE PEAK: 2.82KHz (neck) y 2.37KHz (bridge)
  • INDUCTANCE: 5.36 Henries (neck) y 7.56 Henries (bridge)
  • HUM CANCELLING: Yes

DS110-N

8
BAss
7
Mid
8
Treble

DS110-B

8
Bass
7
Mid
8
Treble
  • WINDING: Closed winding method that provides extra sensitivity and sustain compare to any other humbucker pickup.
  • CABLE: 4-conductor shielded
  • COLORS: black, red/light blue
  • BASE: shielded CEM1 with easy-connector system.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment springs and wiring diagram.
