Blues (DS14) DS Pickups





Blues

DS14

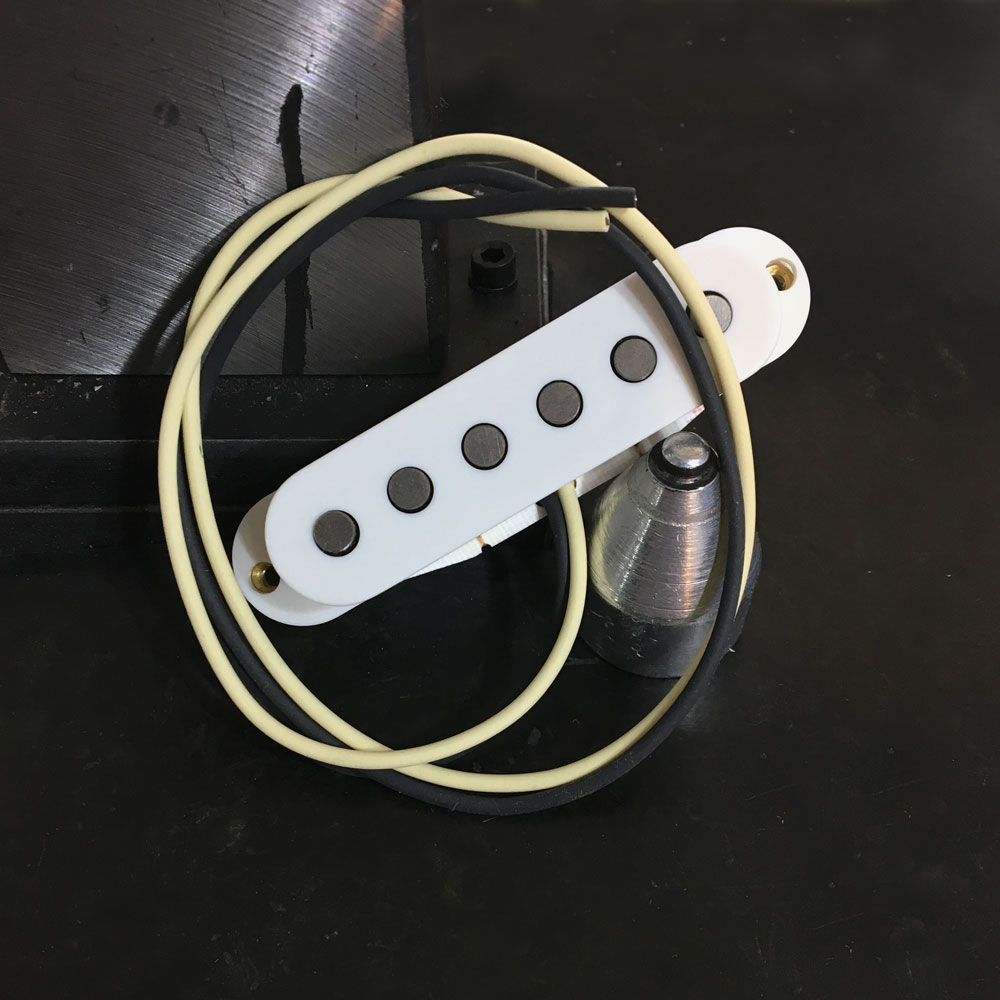

The sound has plenty of midrange chirp, crystal highs and tight bass. This single coil pickup features an overwound single-coil construction that produces Texas-blues tone. Staggered hand-beveled polepieces balance output across every string and add more focus and enhanced dynamics. The middle pickup is RWRP, reverse wind reverse polarity, for noise cancellation in the in-between 2 and 4 positions.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 7,5 K (neck-middle-bridge)
  • MAGNET: Staggered hand-beveled ALNICO 5 pole pieces
  • RESONANCE PEAK: 3,9 KHz
  • INDUCTANCE: 2,77 Henries (neck-middle-bridge)
  • HUM CANCELLING: No
7
Bass
7
Mid
6
Treble
  • CABLE: single conductor Santopren

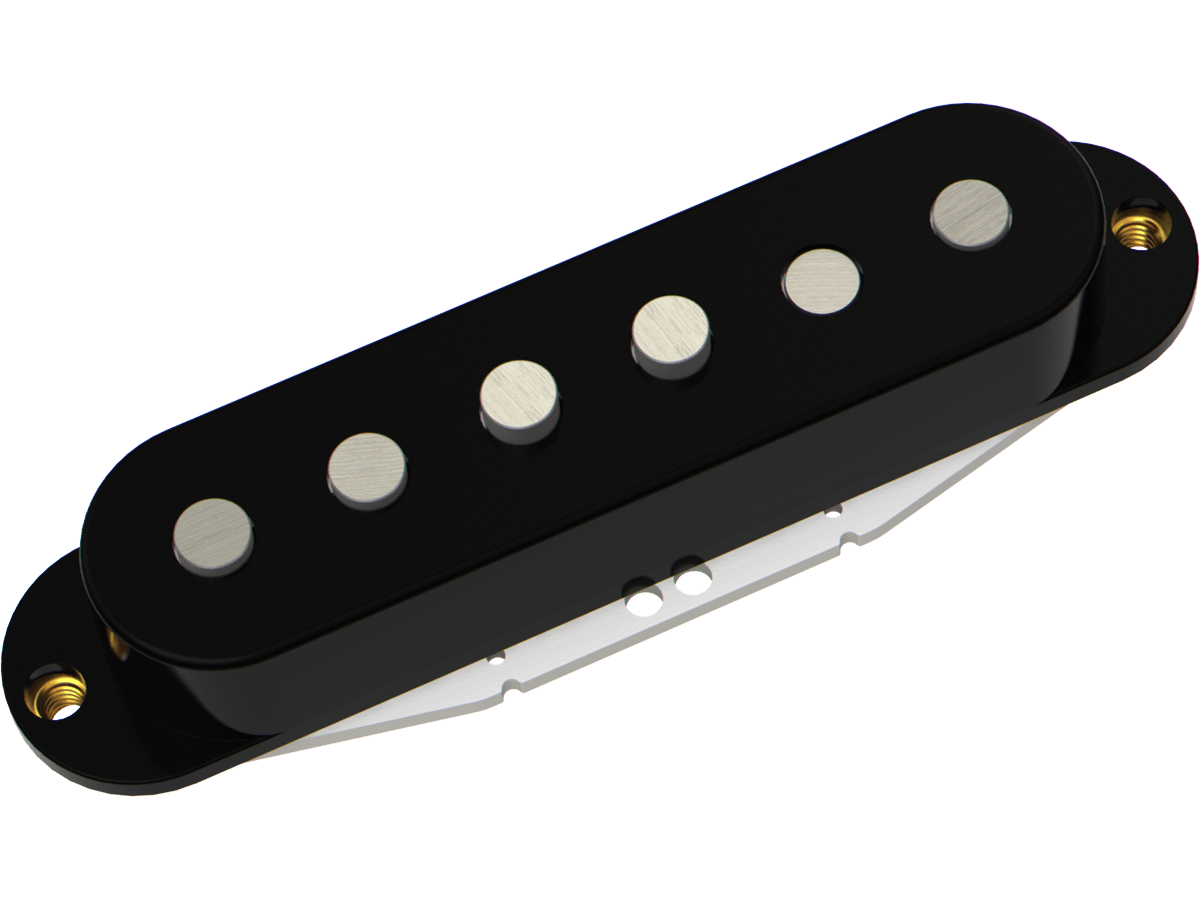

  • PLASTIC COVER: white, black.
  • BASE: CEM1 with two 6/32” brass treads for lifetime guarantee.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment tubing and wiring diagram.
