Jazzmaster ® Classic

DS76

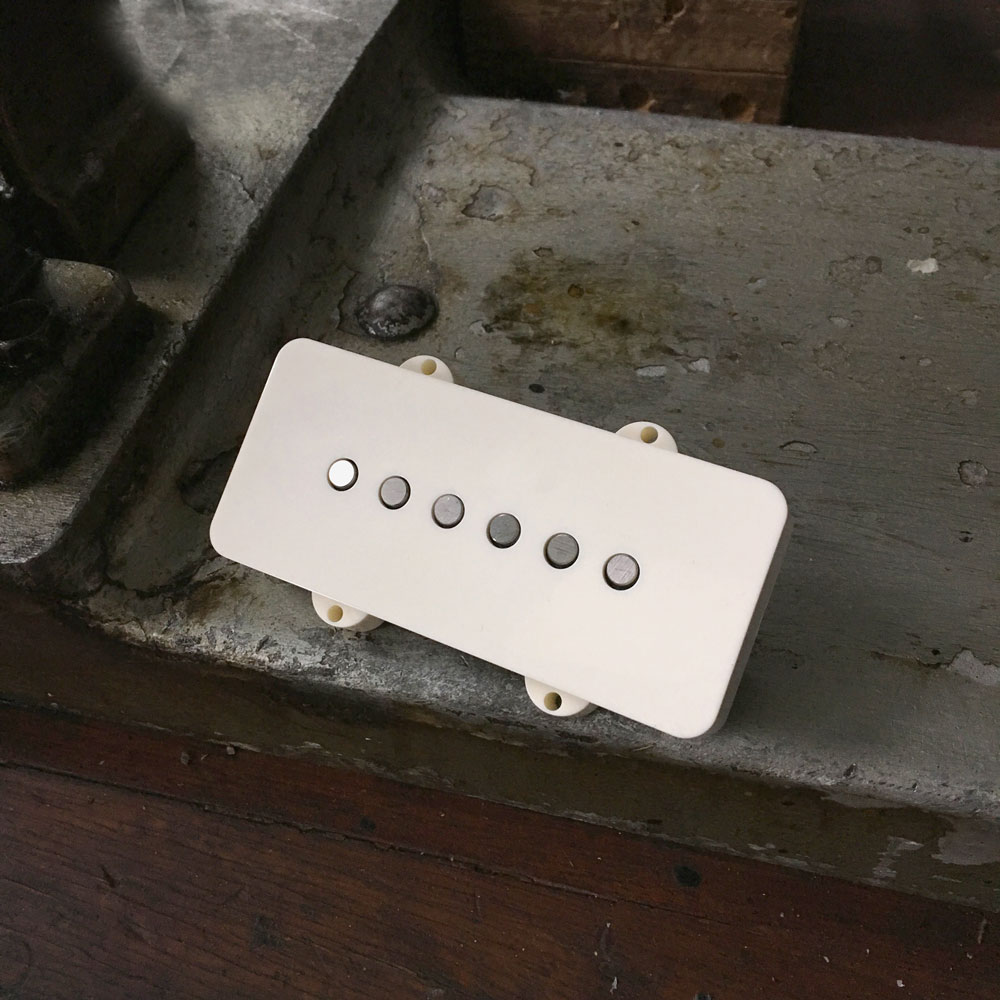

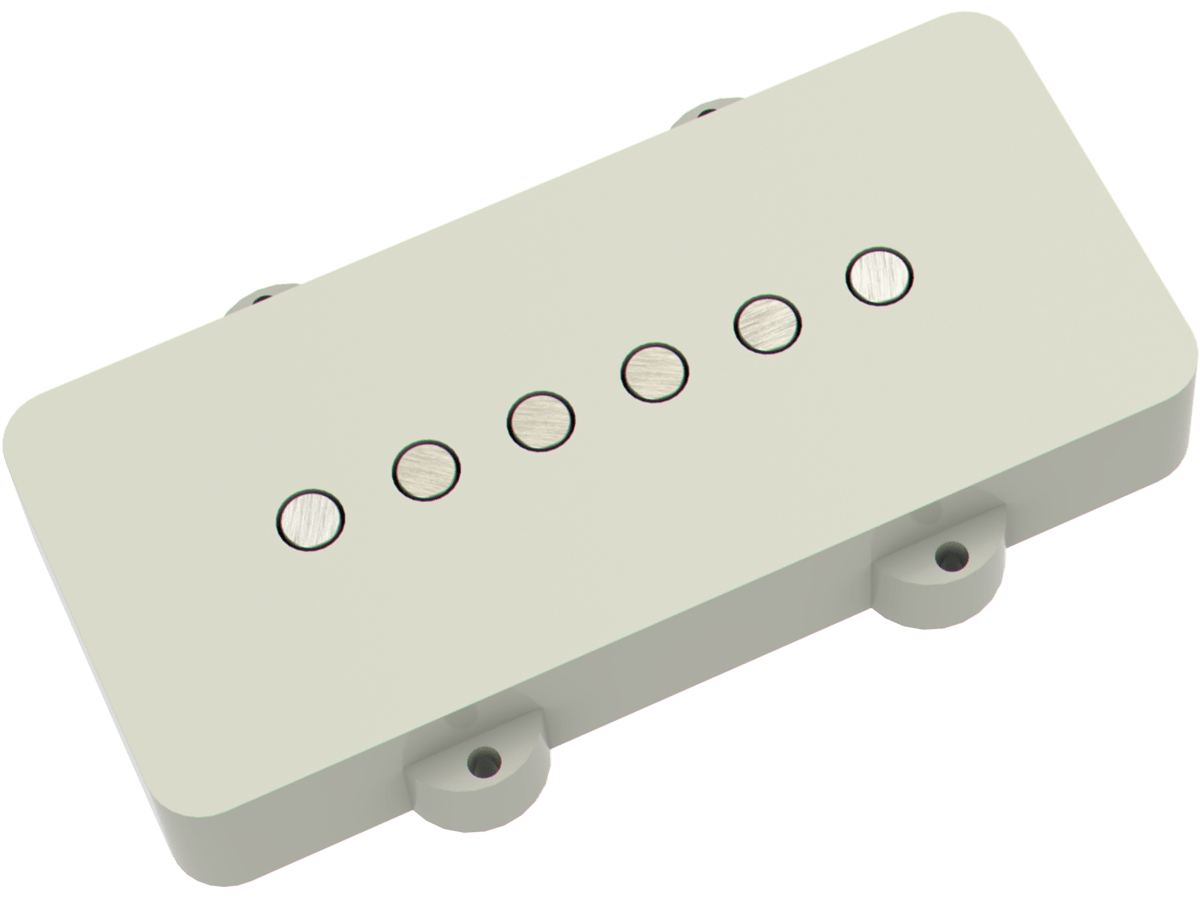

Vintage type single-coil pickup that delivers the classic late 50’s tone. This Jazzmaster ® will give you a bright, punchy surf tone with that nice, fat sounding low end. The neck model is wound RWRP, reverse wind reverse polarity, to offer hum-canceling when used in combination with the bridge pickup. Both neck-bridge pickups are compensated to give you an even out-put signal. Built with the right color and thickness of vulcanized fiber is a drop-in replacement for Fender ® American Standard Jazzmaster ® guitars.
Proudly made in Florida-BA, this pickup is hand built in our workshop and wax potted for squeal free operation.

  • OUTPUT: Moderate
  • DC RESISTANCE: 7,1K (neck) and 7,6K (bridge)
  • MAGNET: Hand-beveled ALNICO 5 polepieces
  • RESONANCE PEAK: 3,87KHz (neck) and 3,6KHz (bridge)
  • INDUCTANCE: 3,05 Henries (neck) y 3,62 Henries (bridge)
  • HUM CANCELLING: No
5
Bass
6
Mid
8
Treble
  • CABLE: single conductor Santoprene®
  • PLASTIC COVER: aged-white and black.
  • BASE: vulcanized fiber.
  • INCLUDED COMPONENTS: Mounting screws, pickup height adjustment rubber and manual instructions.
